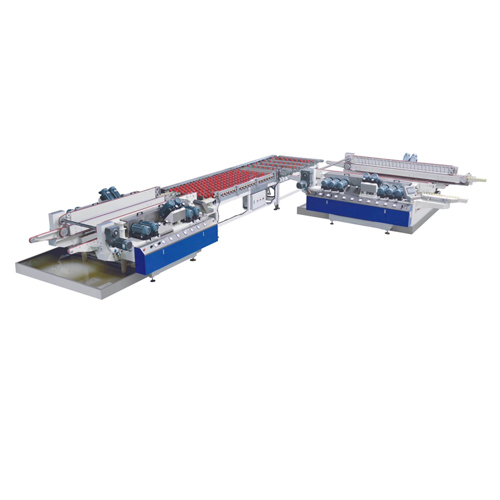

Glass Double Edger Production Line With Washer

Name: Glass Double Edger Production Line With Washer
Brand: SAINT-FECO
Availability: InStock
Rating: 5 (1 reviews)

1.Flange adopt double Ball strew and straight line guiding rail, resetting well.
2.Polishing adopt manual and Pneumatic half auto compensate.

Get A Quote

Features:

1.Flange adopt double Ball strew and straight line guiding rail, resetting well.

2.Polishing adopt manual and Pneumatic half auto compensate.

3.Upper angle of chamfer adopt ball screw and straight line guiding rail, Accurate positioning.

4.Master drive adopt mechanism frequency conversion speed regulation, main driving axle upper place, easy change belt and maintain.

5.Glass transmit adopt annular timing belt and pneumatic locating device, transfer stable, exactly fixed position.

6.Adopt human interface and PLC control system, easy operate.

Parameters:

1.Glass thickness：2～19 mm
2.Min. processed size：160*160 mm
3.Max. processed size：4200*2500mm
4.Max. hemline grinding：2mm(single line)
5.Max. arris grinding：1-3mm
6.speed：0.5～6.5 m/min
7.Width adjustment width : 4m/min
8.working height：920+-20 mm
9.Voltage/frequency：380V/50HZ
10.compress air:≥0.6Mpa
11.water pump output volume:400L/hX2
12.Total power：93 KW.

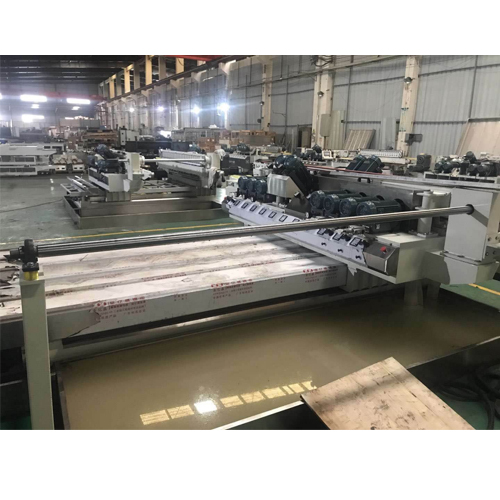

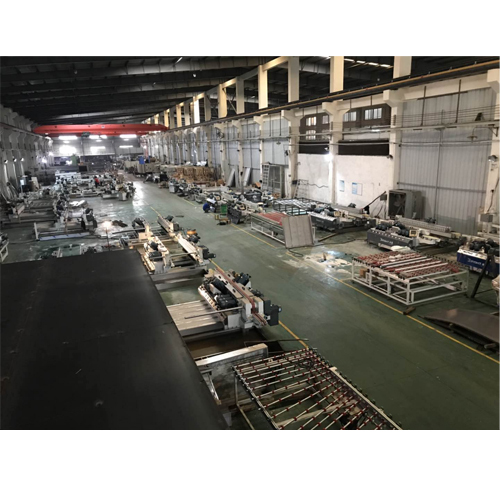

Detailed Pictures

Glass Double Edger Production Line With Washer
