Features

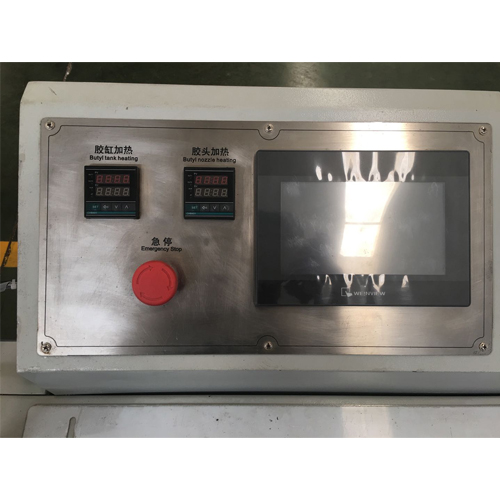

1. Touch Screen interface, PLC control system, digital display to control glue exturde and stop time.
2.Glue cylinder and glue nozzle both automatic heating function.
3.Automatic display function when out of glue
4.Width of glue nozzle manually adjust
Parameters
| Model | SFJ-02 |
| Voltage | 380V/50HZ |
| Power | 3KW |
| Squeeze Pressure | 12-16Mpa |
| Working Speed | 0-50m/min |
| Glue Cylinder Diameter | φ195 |
| Air Pressure | 0.6-0.8Mpa |
| Glue nozzle adjust range | 4-27mm |
| Dimension | 3000x740x340mm |

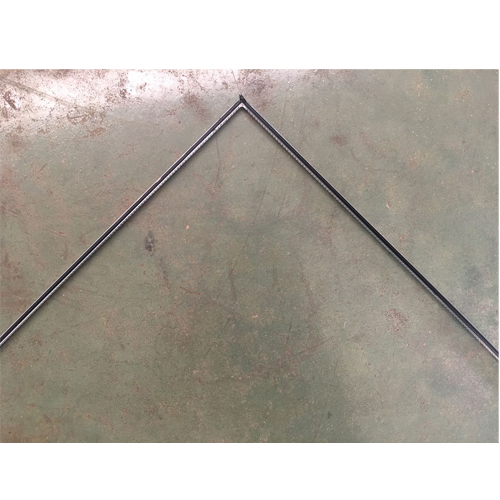

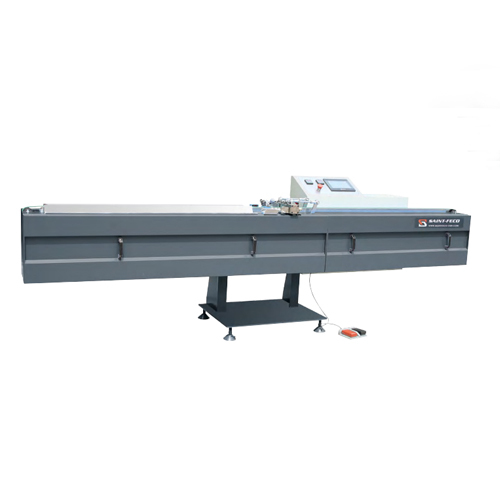

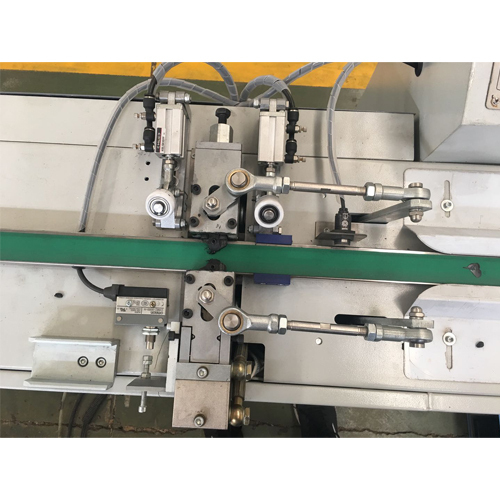

Detailed Pictures:
