Features:
1. Used for punching processing in the manufacture of aluminum windows and doors.
2. Every combination punching die equipped can achieve various punching processes, by changing the processing position, various types of profiles can be processed.

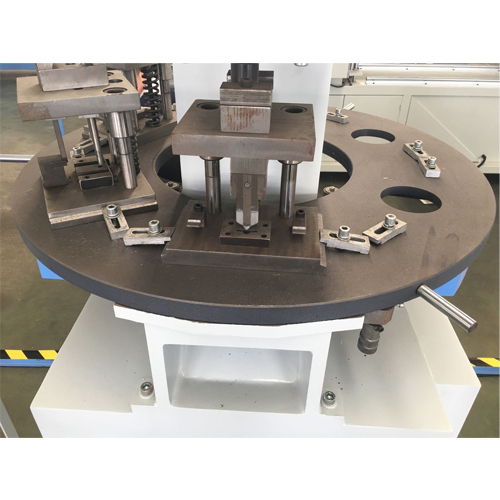

3. Adopt the disk worktable which is equipped with six dies. Each die be used at any time by the worktable rotating, which greatly increases the production efficiency.
Parameters
| Model | LY6-50 |
| Power supply | 380V 50Hz |
| Motor Power | 2.2Kw |
| Rotary Speed | 2850rpm/min |
| Rated oil pump pressure | 16Mpa |
| Rated pressure | 50KN |
| Capacity of Oil Tank | 20L |
| Punching travel times | 30 Times/min |
| Dimension | 900mm×900mm×1400mm |

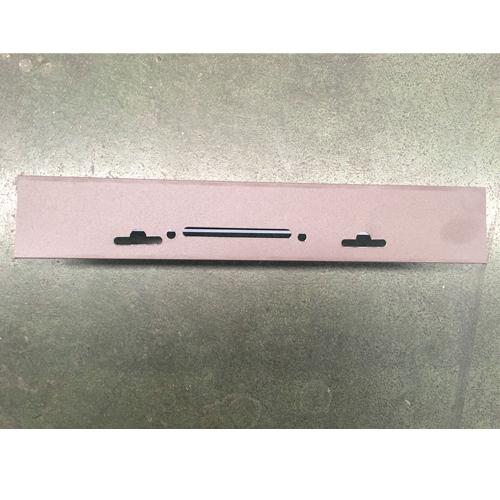

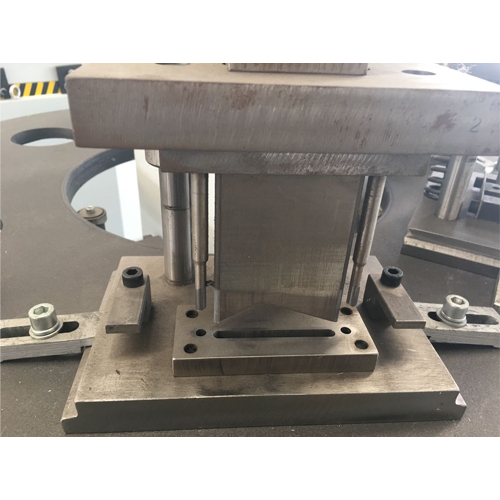

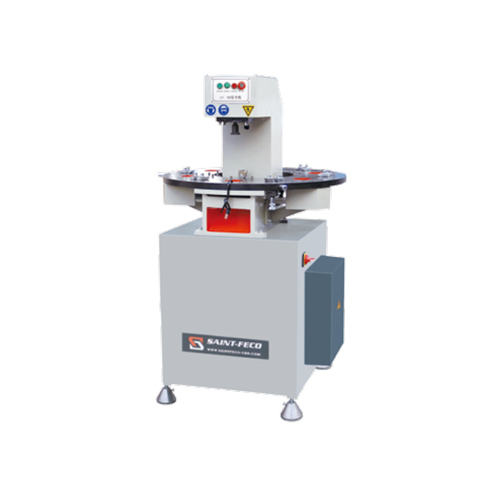

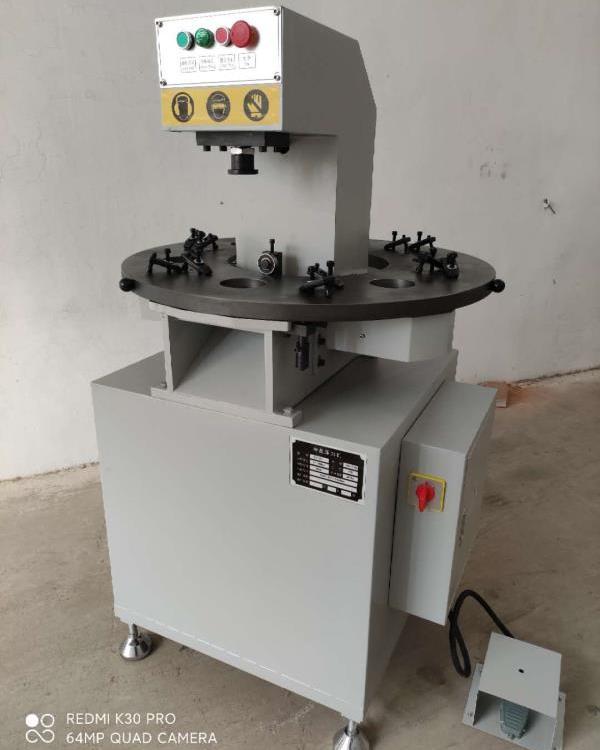

Detailed Pictures
