Features:

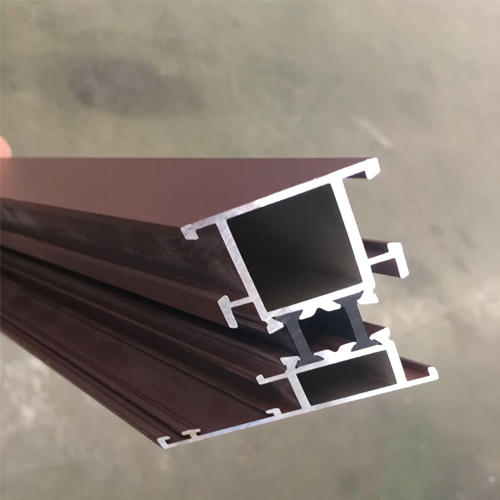

1.Used to cut Aluminum Profile -45° ~90°~45°.
2.Pressure Drive and Linear feeding steadly.
3. Motion of head by imported linear bearing pair .

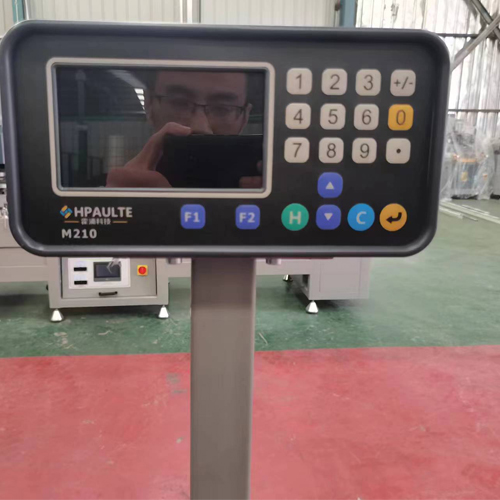

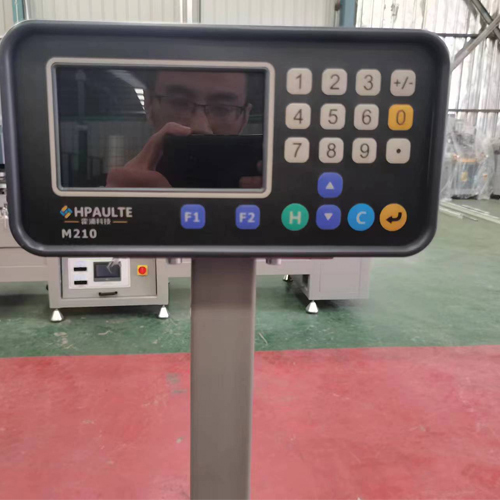

4. The machine has digital display gauge.
5. Solid and Rigid structure , Safe and Reliable , High Precision , Large Range ,Efficiency and Easy Operation
Parameters:
| Model | LJZ2-450x3700A |
| Voltage | 380V/50HZ |
| Power | 1.5KWx2 |
| Rotary Speed | 2850 rpm/min |
| Cutting Angle | -45° ~90°~45° |
| Cutting Width | 120mm |
| Cutting Height | 200mm |
| Cutting Length | 400mm to 3700mm |
| Dimension | 5000x1170x1400mm |
| Weight | 1500KGS |
Machine Videos:

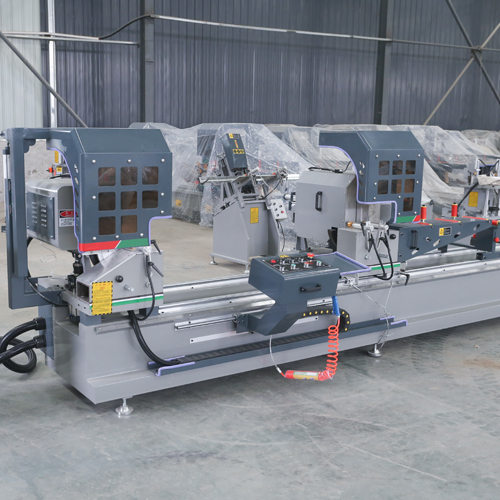

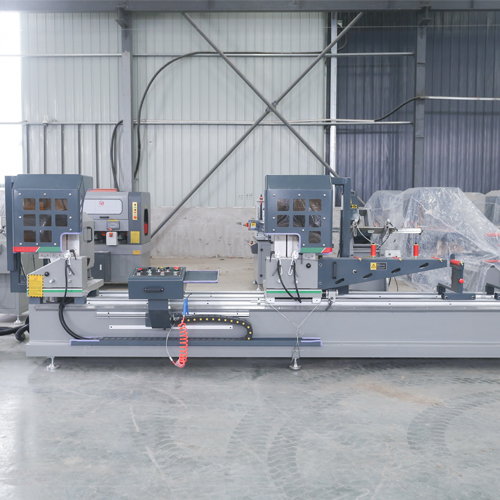

Detailed Pictures:
